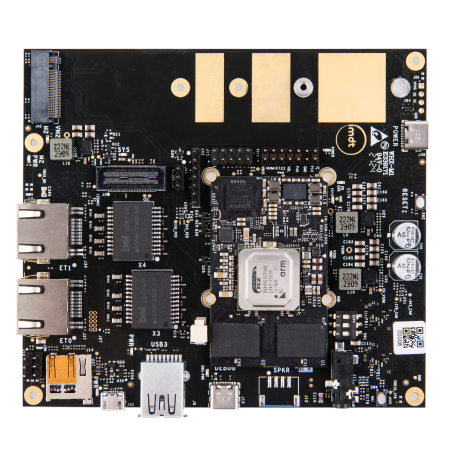

V2H SBC

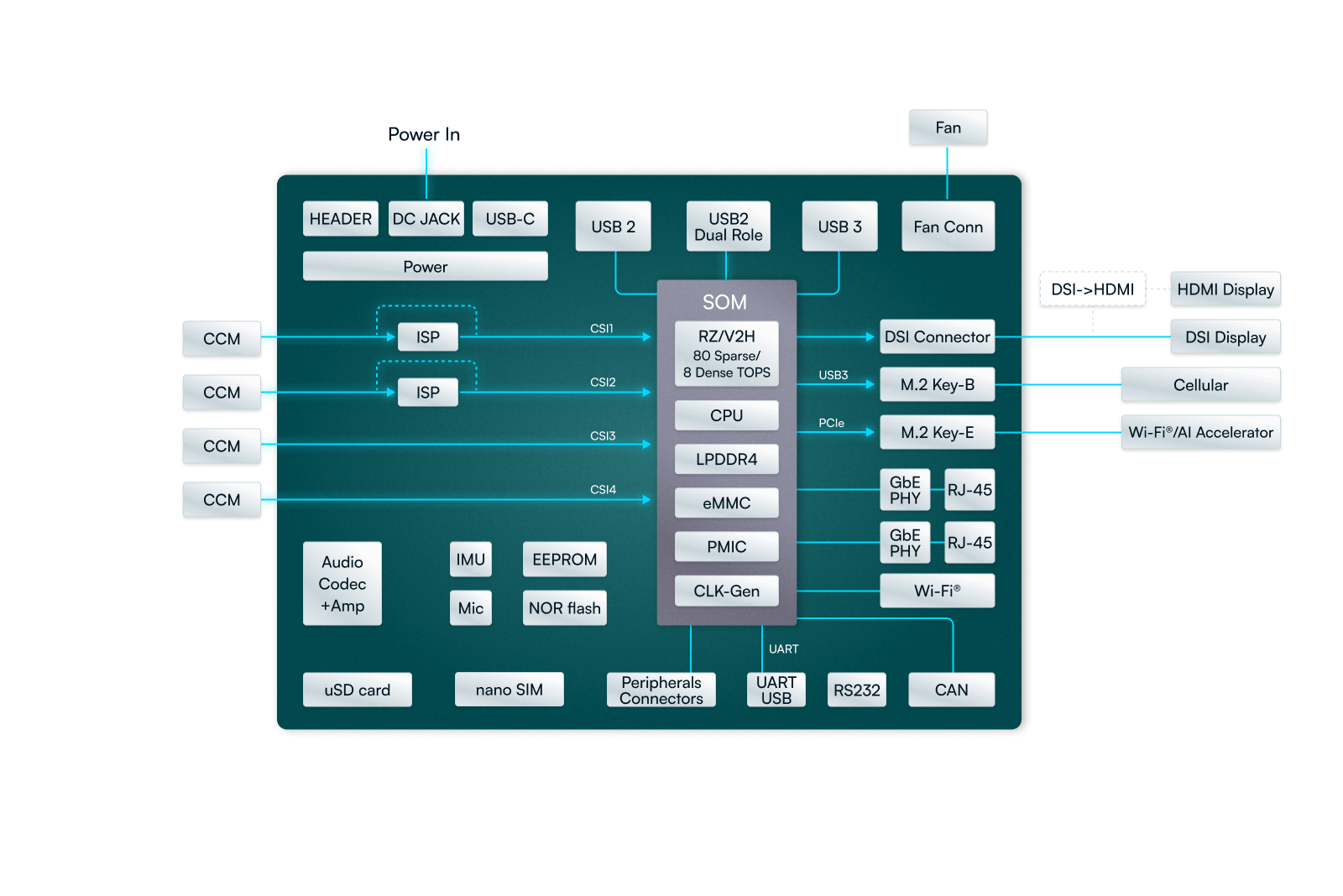

IMDT's V2H SBC carrier board transforms the IMDT V2H SoM into a compact, high-performance mini-computer. This fully customizable small form factor SBC features a cost-effective system design ideal for diverse applications in robotics, drones, and smart city projects. The V2H SBC provides a multitude of assembly options, personalized and adjusted to meet specific customer needs, alongside comprehensive onboard connectivity. It presents developers with an energy-efficient solution that occupies minimal space.













- CPU | RZ/V2H, 4xA55+M33+2xR8, VPU, NPU, GPU, ISP^^
- Memories | QSPI NOR flash, 64MBytes^^Secure EEPROM^^Micro SD card slot^^
- Connectivity | 2.4/5GHz Wi-Fi 802.11a/b/g/n + Bluetooth 5.2 BR/EDR/LE^^2 x RJ-45 , 1000Base-T, Optional PoE^^1 x USB 3.2 type-A connector^^2 x USB 2.0 connectors^^M.2 NGFF Key-E can be used for Wi-Fi module^^or AI accelerator^^M.2 NGFF Key-B can be used for cellular Module^^RS-232 transceiver on board^^CAN-FD transceiver on board^^
- Camera | 4 x 4-lane MIPI CSI interface for cameras via IAS connectors^^ISP^^
- Audio | 3.5mm Audio jack for stereo headset with mic^^Onboard PDM digital microphone^^
- Sensors | Temperature & Humidity^^6-DOF IMU^^3-Axis magnetometer
- Power | USB-C PD power^^POE+GTP (with addition of power supply module)^^Optional external power supply^^
- Misc | RTC^^Fan control^^Boot DIP-Switch^^LEDs^^Debug - On board UART to USB bridge with USB-C connector^^
- Extensions | SPI, I2C, I2S, PDM, GPIOs, Analog headers^^Extension connectors with power and I2C
- Dimensions | 125 x 80 x 20mm^^
IMDT's V2H Evaluation Kit, based on the IMDT V2H SBC (Single Board Computer), is a high-performance mini-computer designed for a variety of applications in robotics, drones, and smart city projects. The kit offers a user-friendly board with comprehensive onboard connectivity, providing developers with an energy-efficient solution that occupies minimal space. The V2H EVK can serve as a comprehensive development platform for both evaluation and application development purposes.The kit offers an excellent demonstration of the V2H SOM and SBC connectivity features and performance.

What's in the box
IMDT's V2H SBC

2 x USB cable C - C type
for power supply & Debug

Full HD USB camera

2 x AR1335 mipi cameras

Antenna

USB-C PD 35W Wall Adapter
with foldable US prongs & replaceable EU and UK plugs

DSI to HDMI adapter & HDMI cable
Optional
