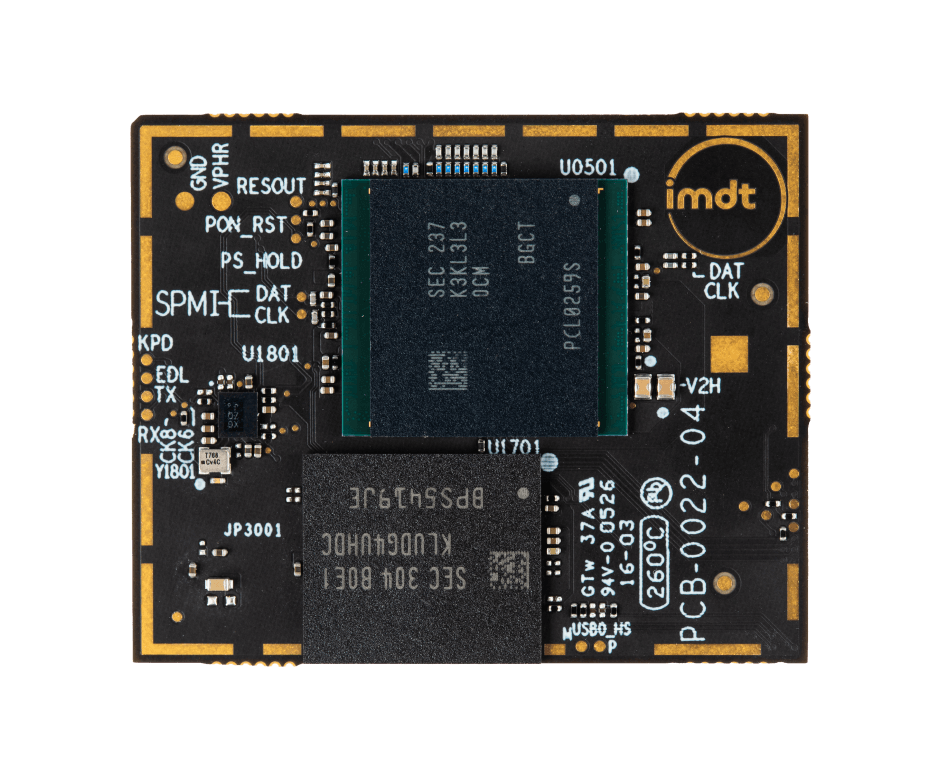

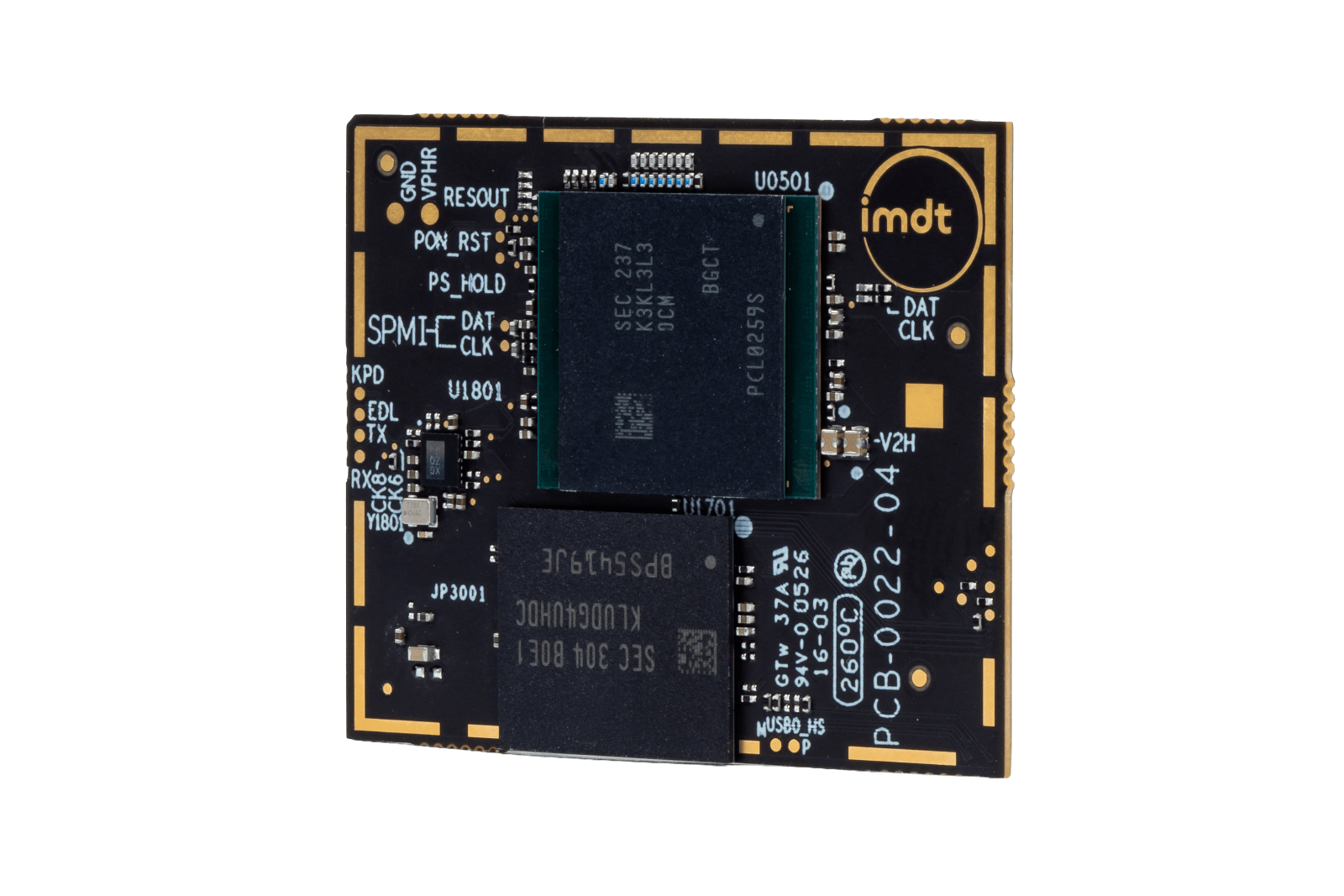

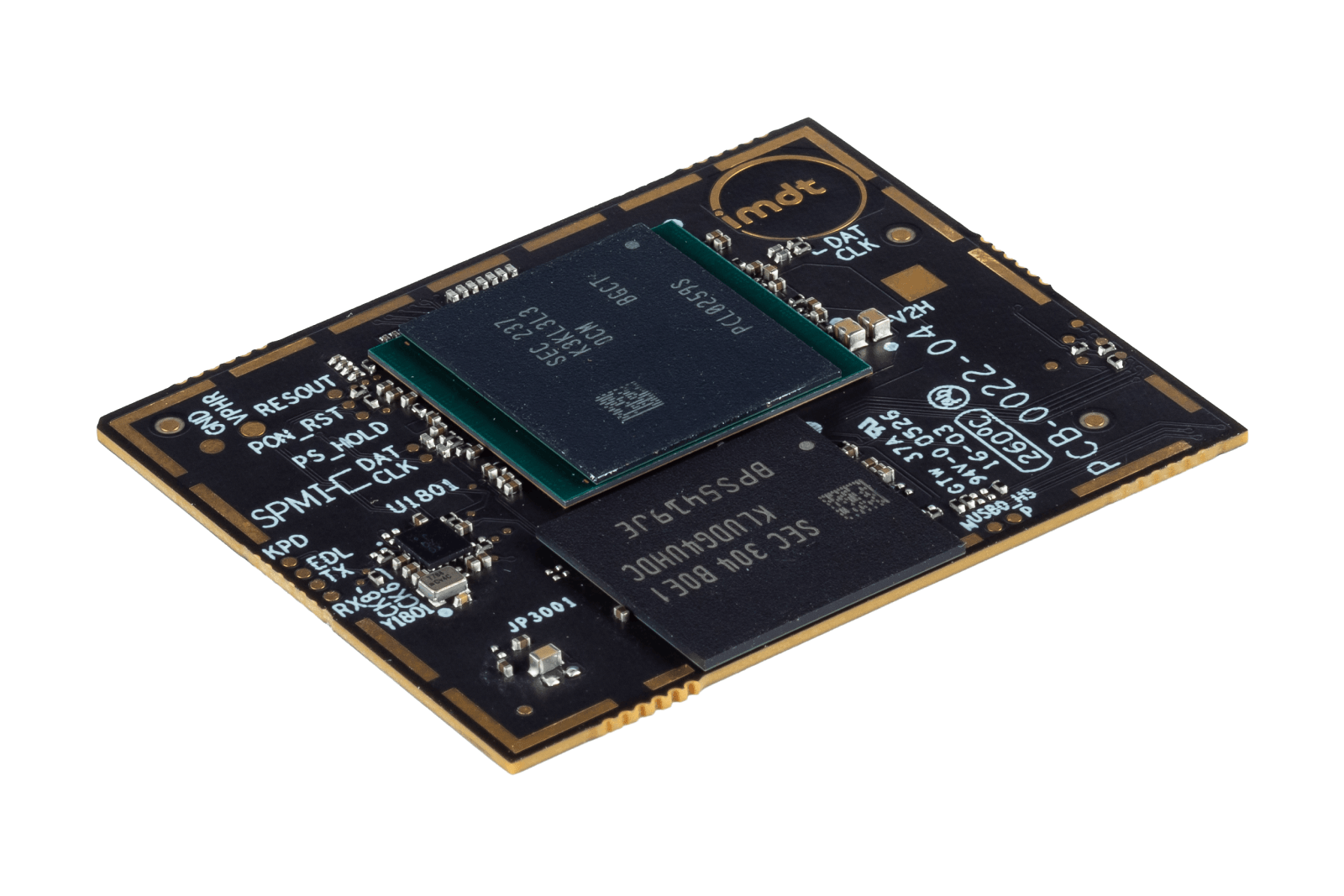

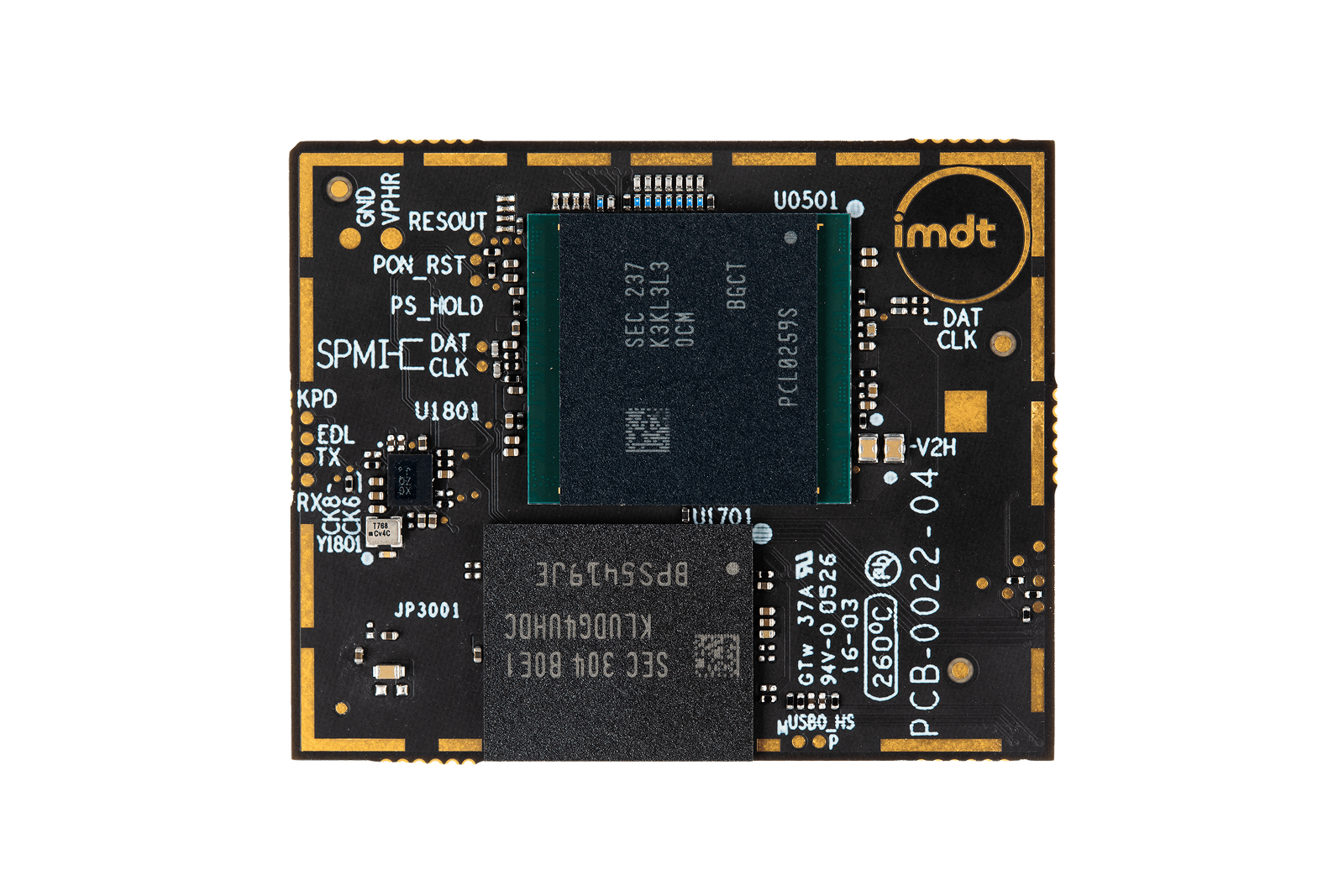

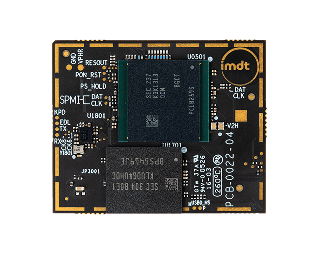

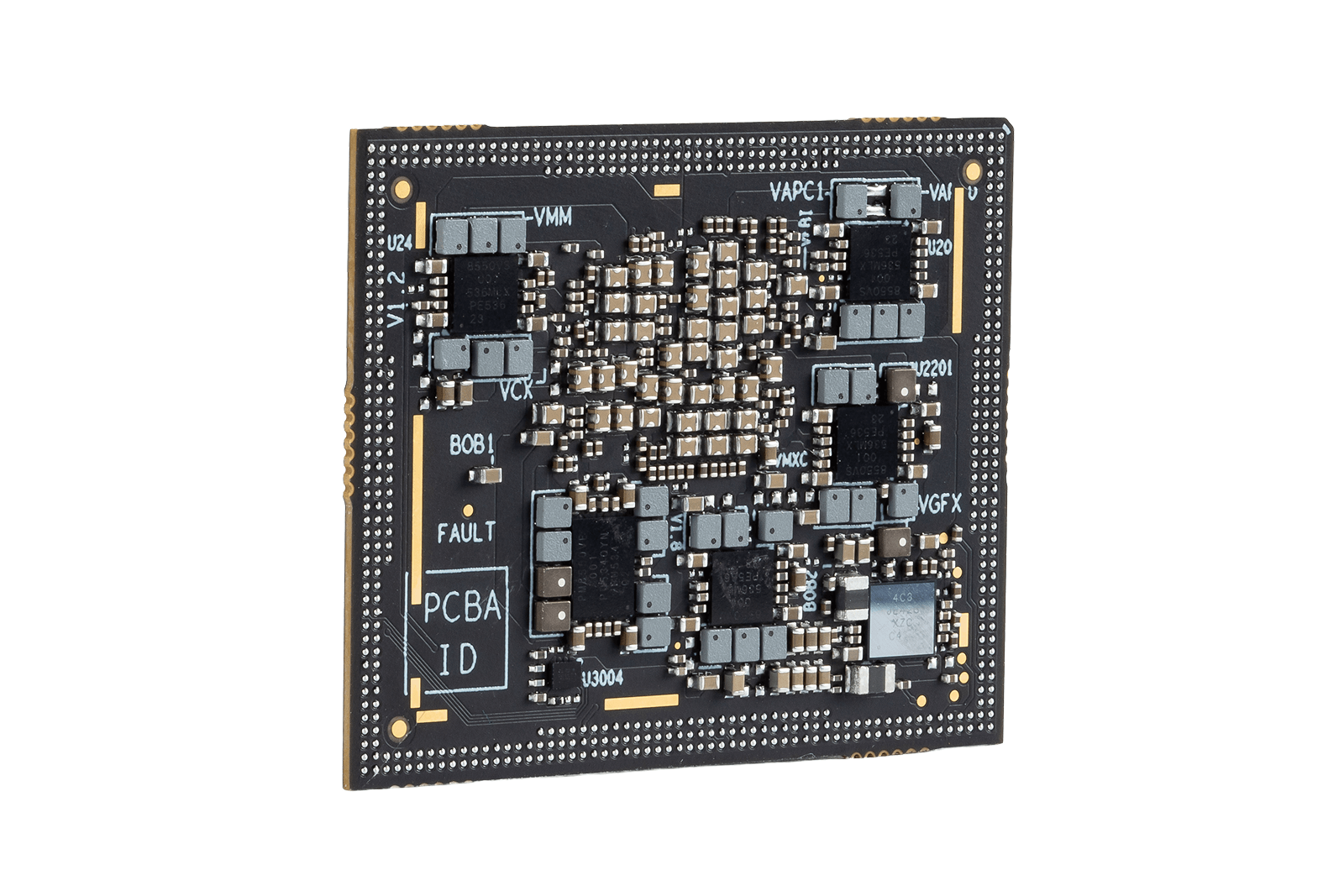

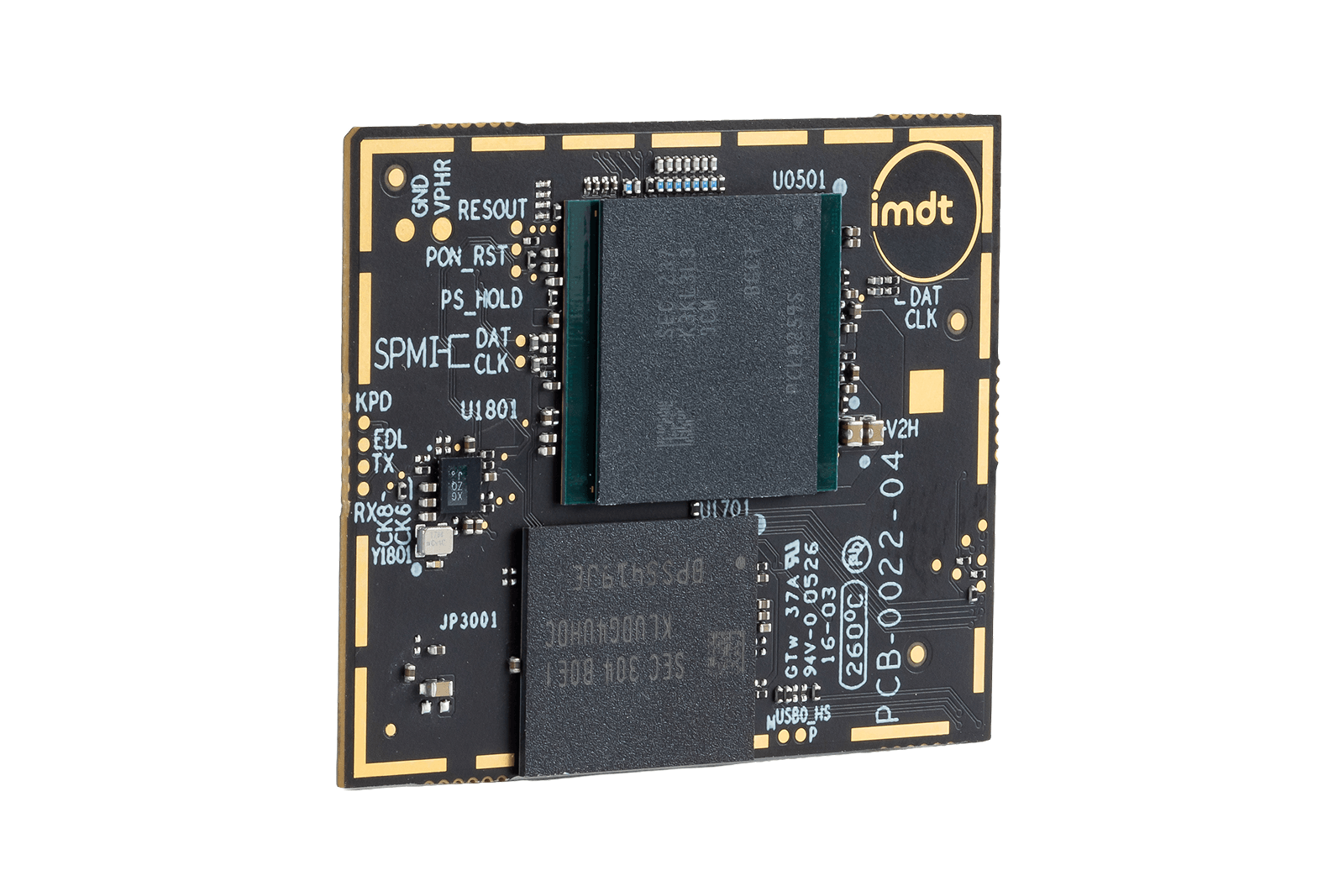

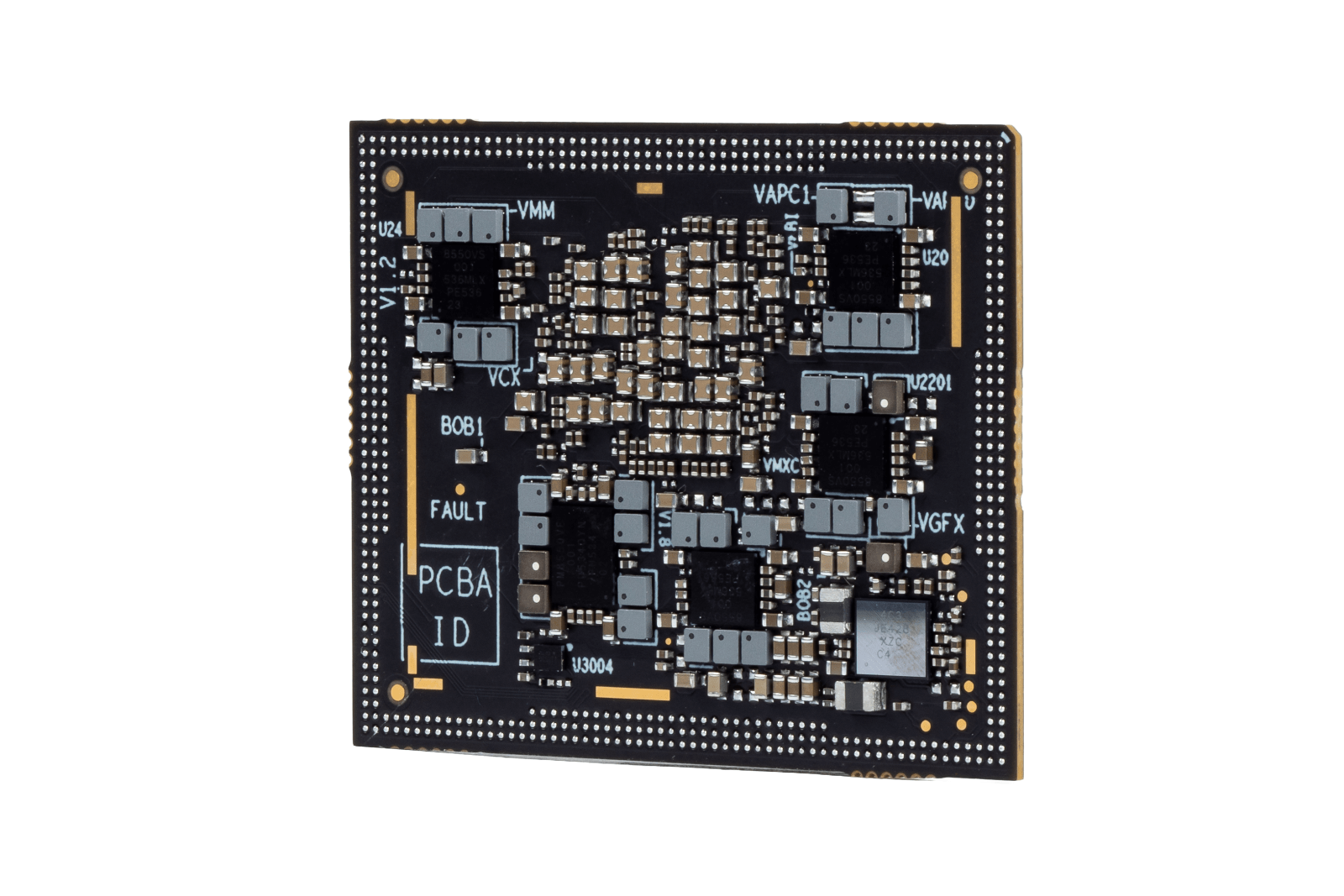

QCS8550 SOM
The IMDT QCS8550 SOM, powered by the Qualcomm® QCS8550 processor, is a production-ready module. Measuring just 37 x 30 x 4mm, The IMDT QCS8550 based SOM provides superior computing power, advanced Edge AI processing, and crystal-clear video and graphics, making it ideal for performance intensive AIoT applications. It supports 8 x 4-lane MIPI CSI connections, enabling attachment of up to 20 cameras, and in addition - the full module provides customizable options such as onboard Wi-Fi/Bluetooth, various memory and storage capacities, and PHY configurations, allowing users to tailor the system to their specific needs.
Core benefits
Small form factor
Complete solution including HW&SW
Flexible & modular platform
Advanced Security
No items found.
Qualcomm Kryo central processing unit (CPU), X1.5 compute power
Qualcomm Adreno GPU, X3 performance
Multiple display interface
8th-generation Qualcomm AI Engine, X10 performance
Qualcomm Spectra 18-bit triple cognitive image signal processor (ISP)
Multiple camera pipelines for high-end imaging
Enterprise-grade security capability - Trust Management Engine and Qualcomm Type-1 Hypervisor

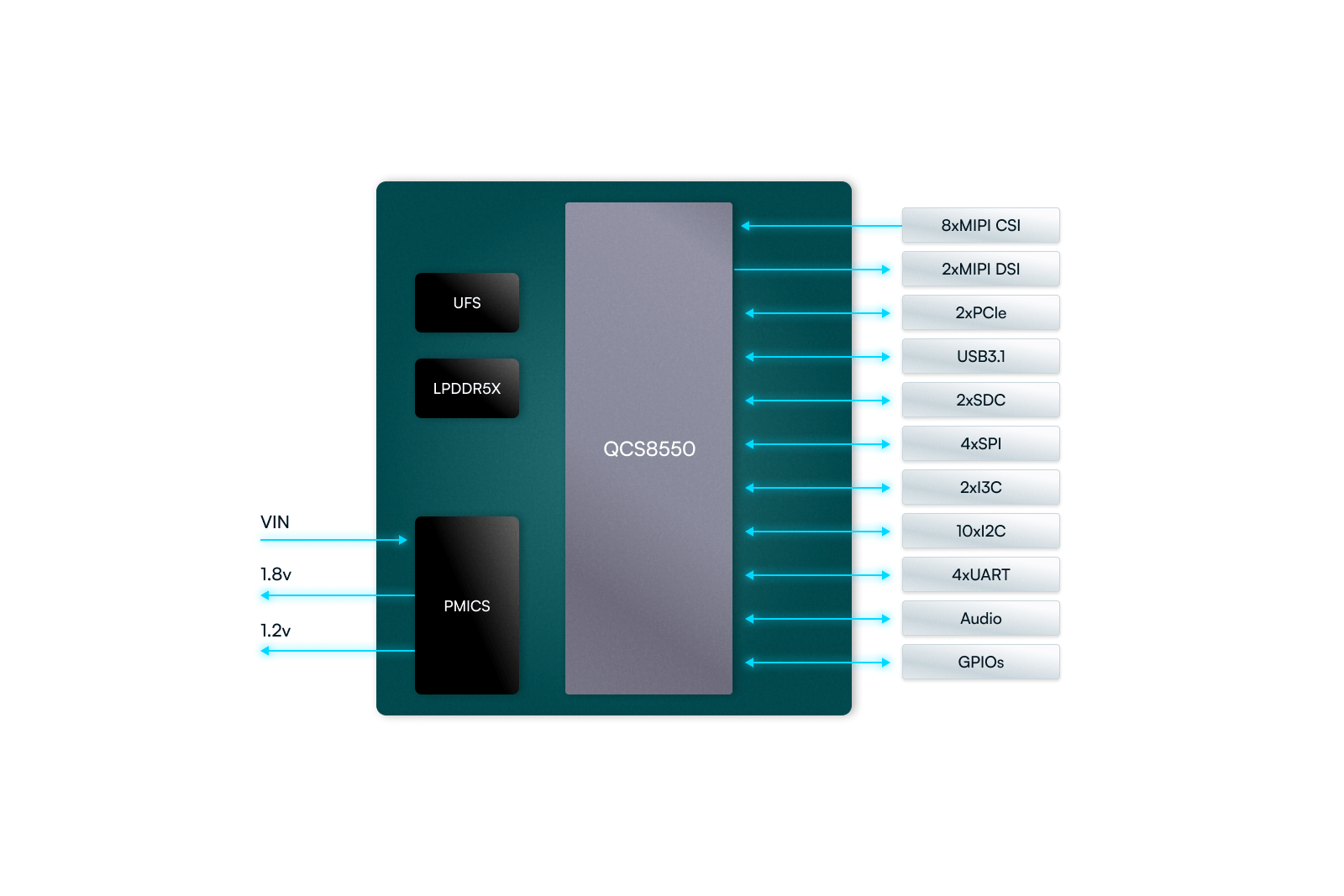

Specification
Description
- CPU | QCS-8550-1-Ax, 6/8 CPU cores, GPU, V73 AI processor^^
- Memories | 3750MHz LPDDR5X, 8GB/12GB^^UFS 3.1/4.0, 128/256GB
- Connectivity | USB3.1 gen2 10Gbps (DP+data) Type-C^^2 x 4-Lane PCIe (1xGen3, 1xGen4)^^2 x SDC (4-bits)^^
- Camera | 8 x 4-lane MIPI CSI interface for cameras, max 20 x cameras^^ISP – Qualcomm spectra
- Display | 2 x 4-lane DSI, with touch I/F
- Audio | 2 x Soundwire^^ 2 x I2S^^ 2 x PDM
- Other I/Fs:l 10 x I2C (10 I2C hubs)^^ 2 x I3C^^ 4 x SPI^^ 4 x UART^^ GPIOs
- Power | Single power input^^ Integrated PMICs^^ 1.8v,1.2v outputs

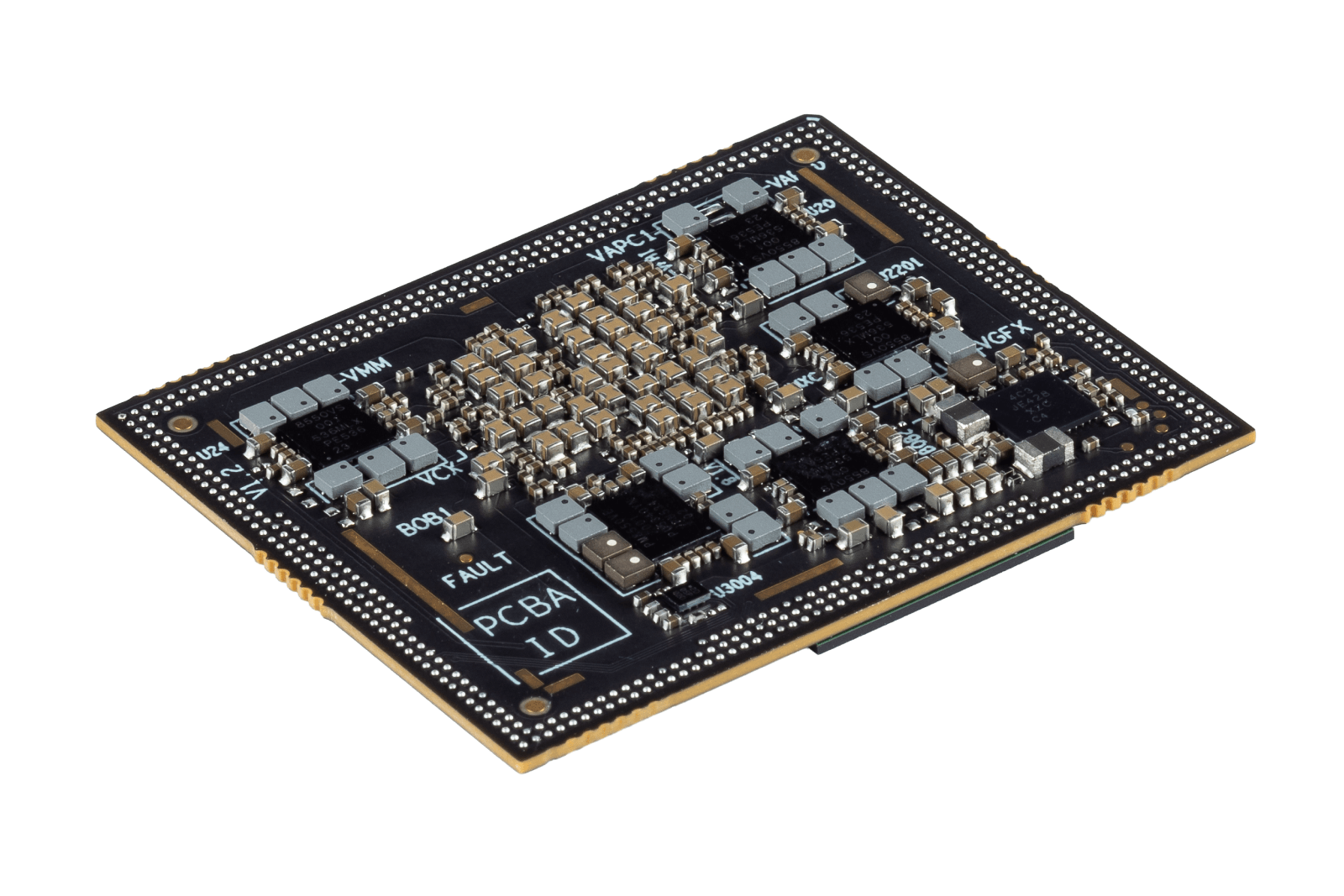

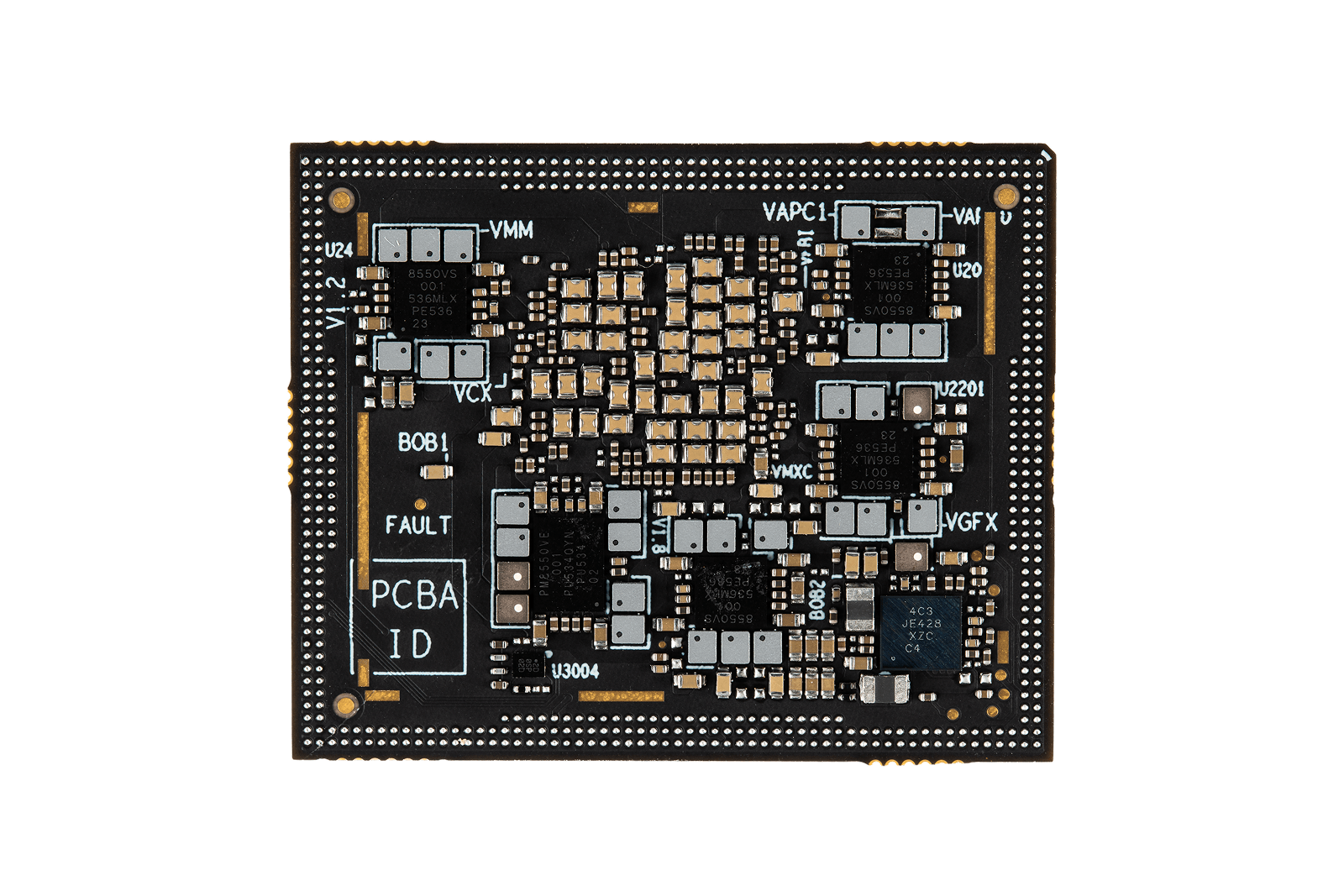

- Mounting | 504-pin BGA, 0.6mm pitch, for SMT assembly
- Dimensions | 37 x 30 x 4mm
