i.MX 8M Plus SBC series
The i.MX 8M Plus series of single board computers (SBCs) offers a customizable, cost-effective solution for IoT applications, featuring a small form factor. Designed for energy efficiency and full connectivity, these SBCs come with diverse assembly options tailored to specific customer needs, making them ideal for a variety of applications requiring a compact footprint.
Core benefits

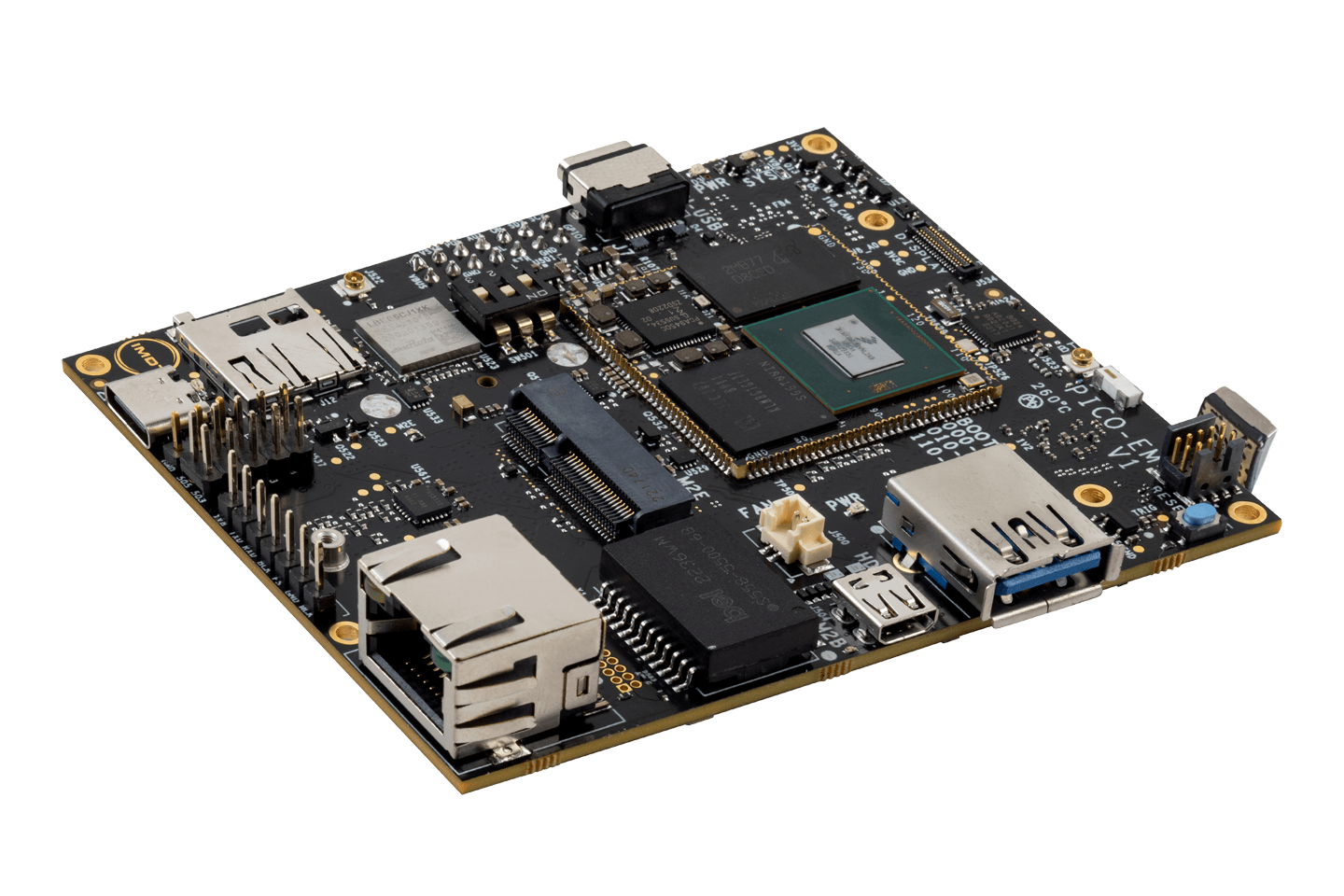

i.MX 8M Plus-E SBC
The i.MX 8M Plus-E SBC is a versatile carrier board for the i.MX 8M Plus SOM, offering extensive connectivity with dual USB 3.0 type-A, a USB 3.0 type-C, multiple M.2 slots, and dual nano SIM support. It provides flexible storage through eMMC and MicroSD, and includes a CAN-FD transceiver, Gigabit Ethernet, and an optional PoE. This SBC is designed for adaptability in various applications.
- CPU | i.MX8MPlus, Quad A53, NPU, VPU
- Memories | LPDDR4, 1GB/2GB/4GB/6GB/8GB^^
eMMC 5.1^^
Nor Flash 128Mbit for fast boot^^
Secure EEPROM^^
Micro SD card slot
- Connectivity | 2.4/5GHz Wi-Fi 802.11a/b/g/n + Bluetooth 5.2 BR/EDR/LE^^
BLE 5.3 with Coded-phy (long range) mesh and direction finding^^
Optional CAT-M1 / NB-IoT + GPS cellular module dual nano SIM^^
Gigabit Ethernet, Optional PoE^^
1 x USB-3.0 type-C connector^^
2 x USB 3.0 type-A connectors (shared with onboard USB hub)^^
M.2 NGFF Key-E for Wi-Fi module / AI accelerator^^
M.2 NGFF Key-B for cellular Module^^
RS-232 transceiver onboard^^
CAN-FD transceiver onboard^^
- Camera | 2 x 4-lane MIPI CSI interface for cameras^^
ISP^^ - Display | 4-lane DSI, with touch I/F^^
Dual 4-lane LVDS, with touch I/F^^
HDMI Full size connector^^
- Audio | 3.5mm Audio jack for stereo headset with mic^^
Stereo speakers with 4W amplifier^^
Onboard digital microphone^^ - Sensors | Temperature & Humidity^^
6-DOFIMU^^
3-Axis magnetometer^^ - Power | USB-C power (5V/3A)^^
Header for external 5V/3A^^ - Misc | RTC^^
Fan control^^
Onboard UART to USB dual bridge with USB-C connector^^
Boot DIP-Switch^^
LEDs^^ - Extensions | SPI, I2C, GPIOs header for external sensors^^
3 extension connectors with power and l2C^^
- Dimensions | 113 x 72 x 19mm

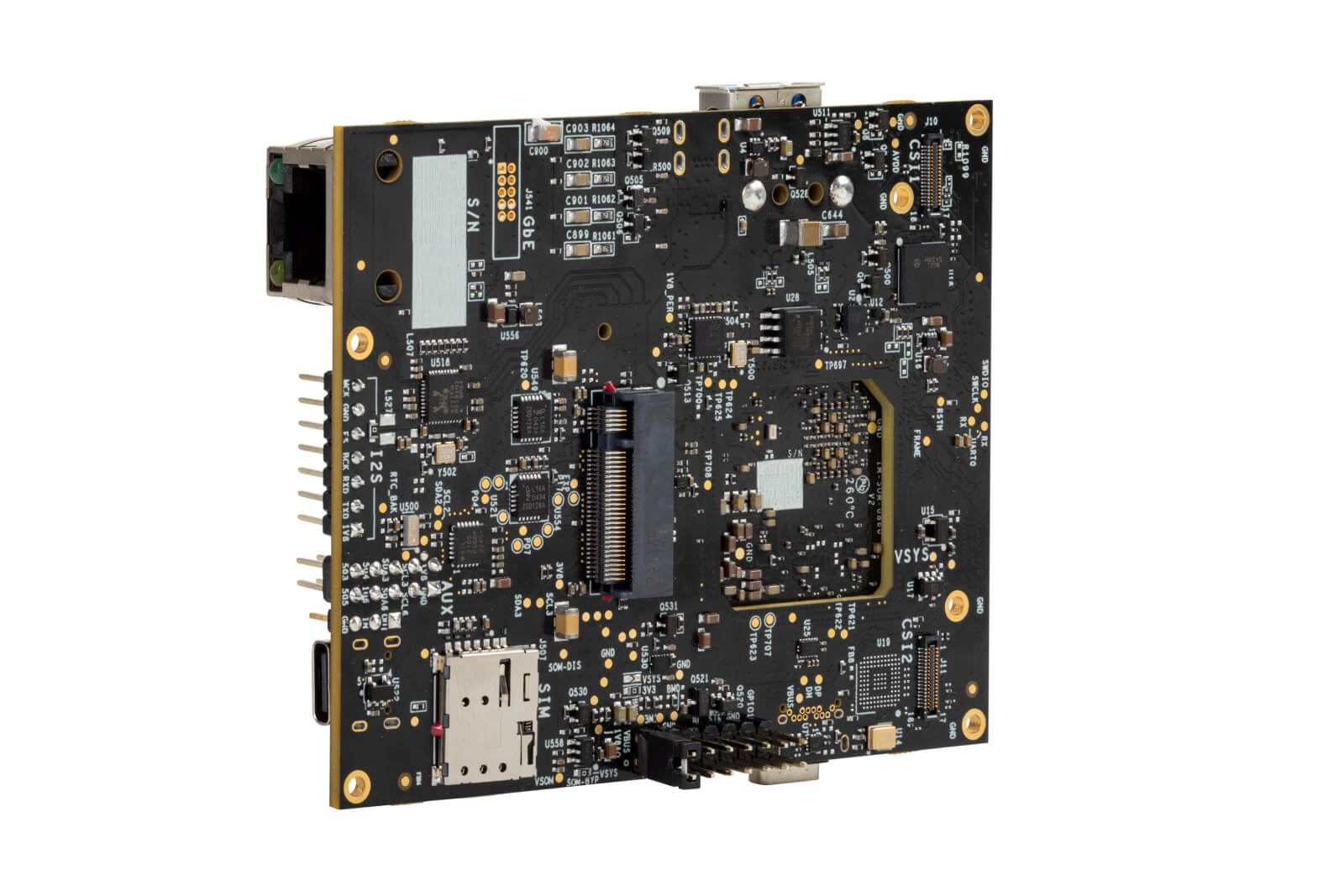

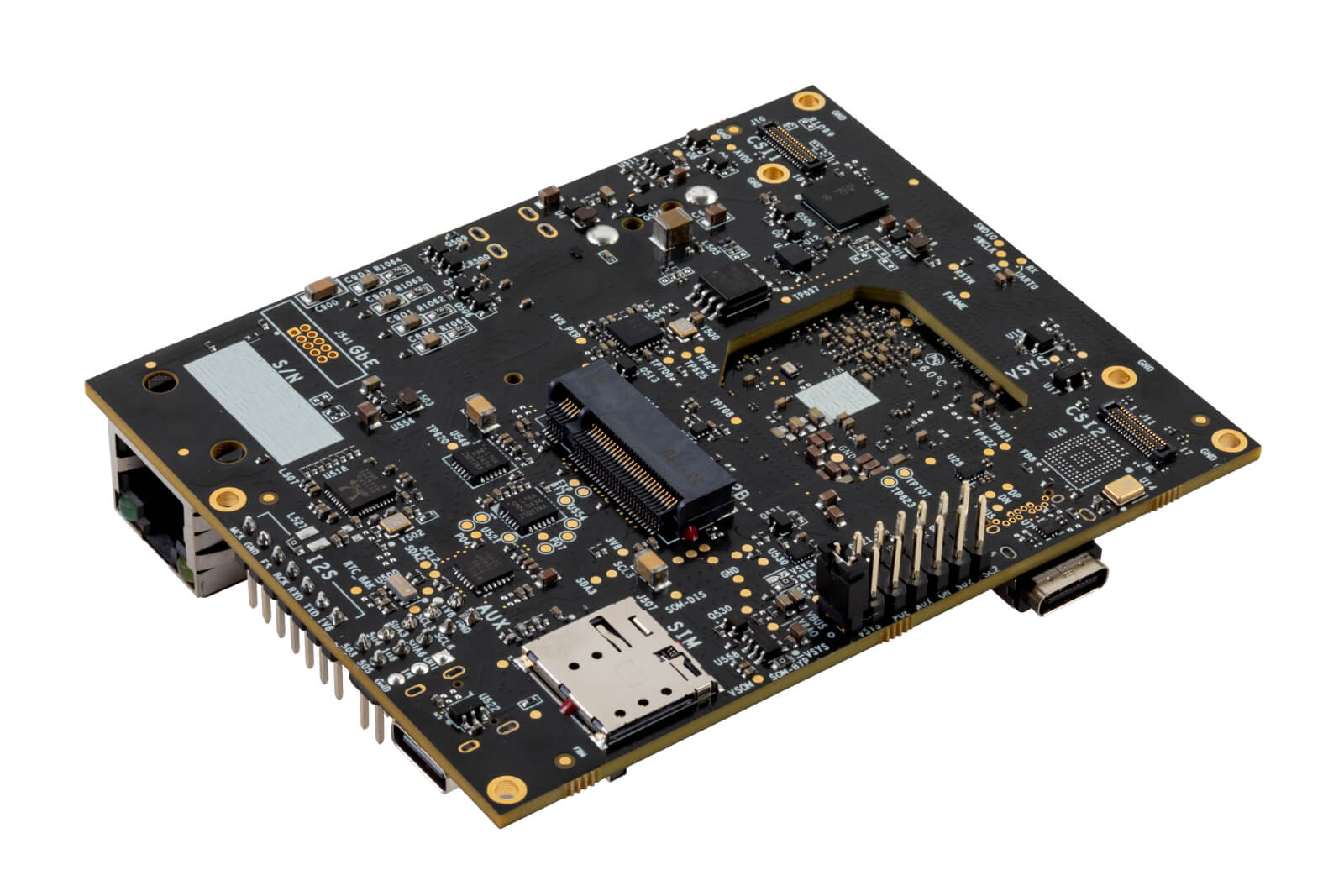

i.MX 8M Plus-EM SBC

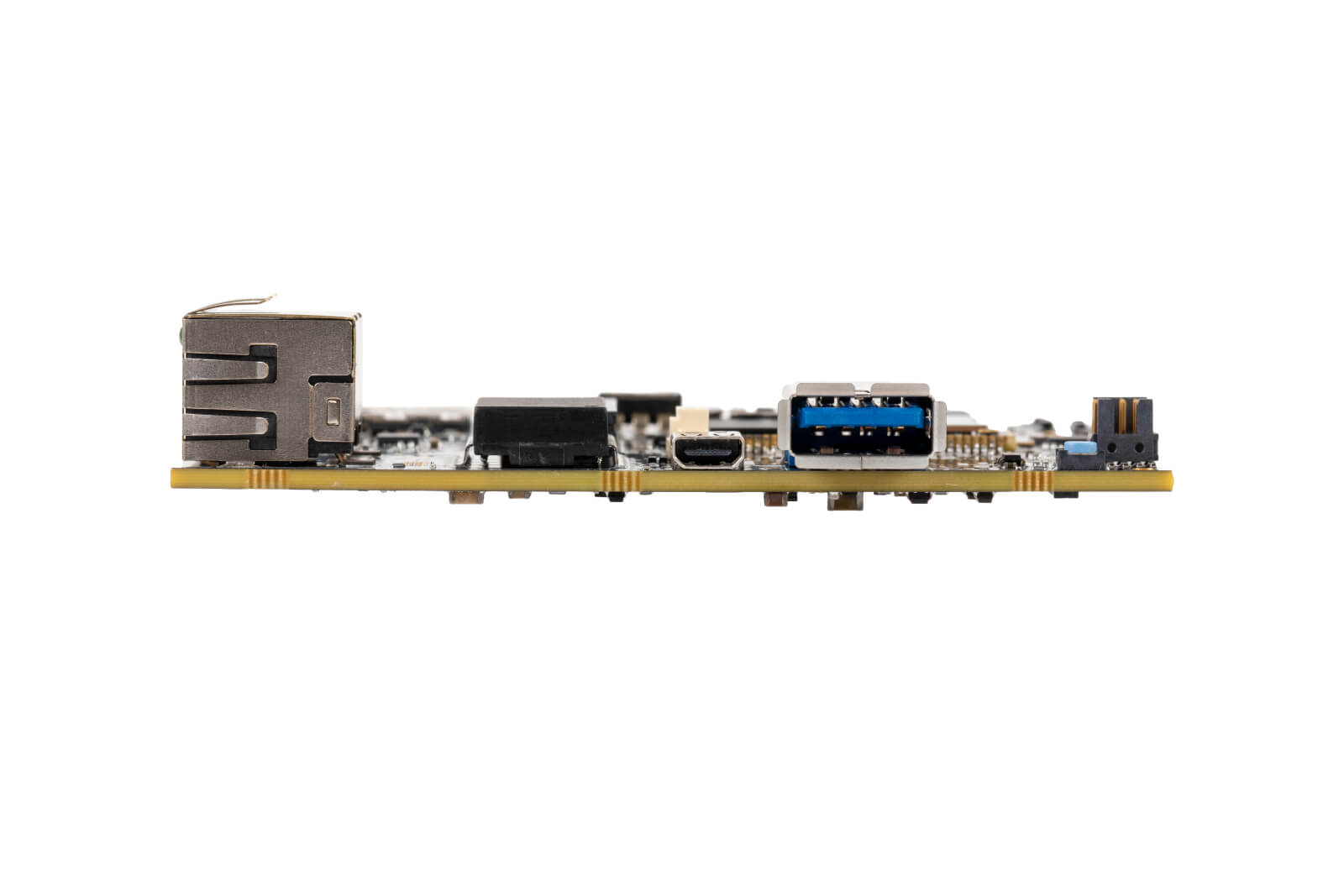

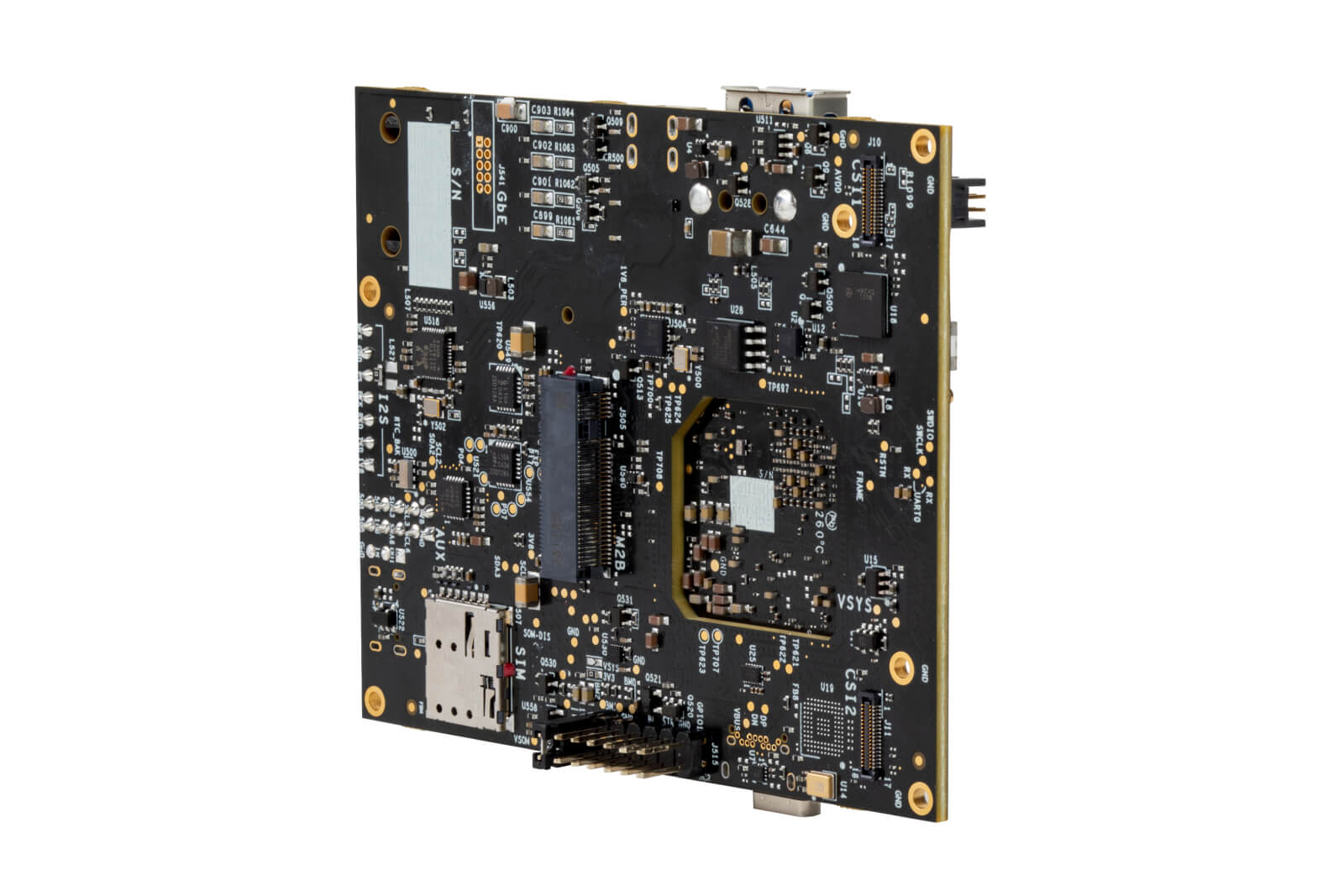

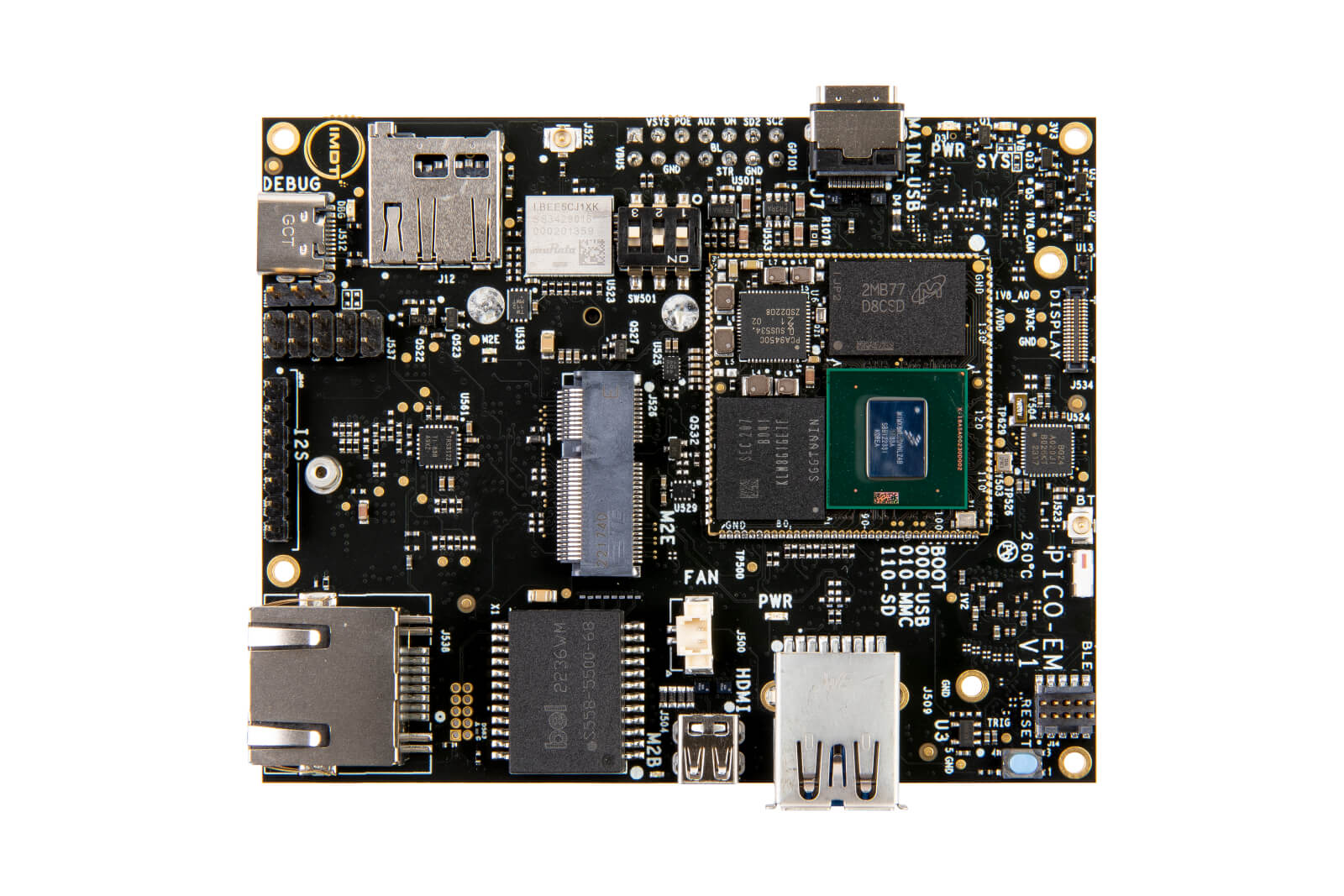

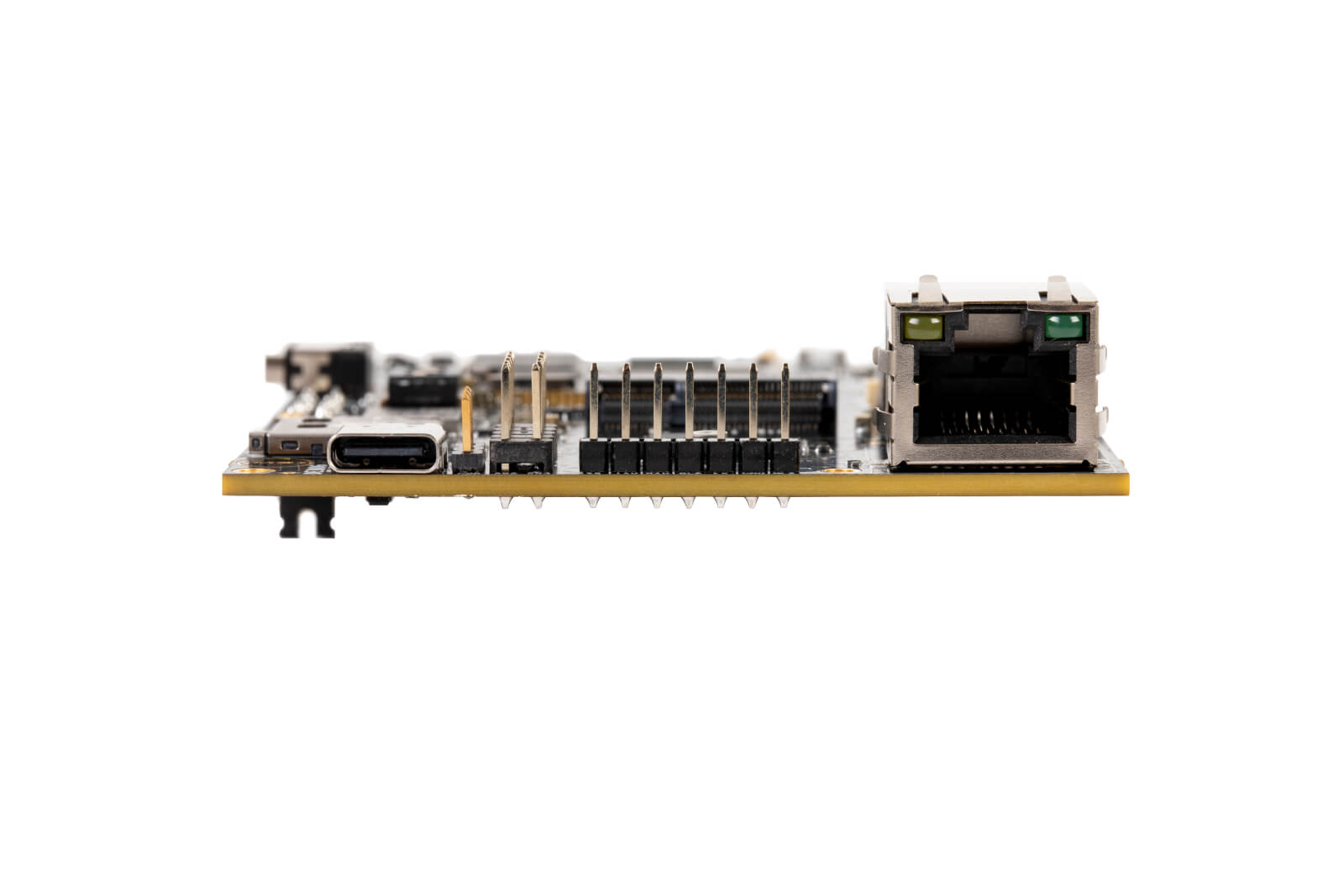

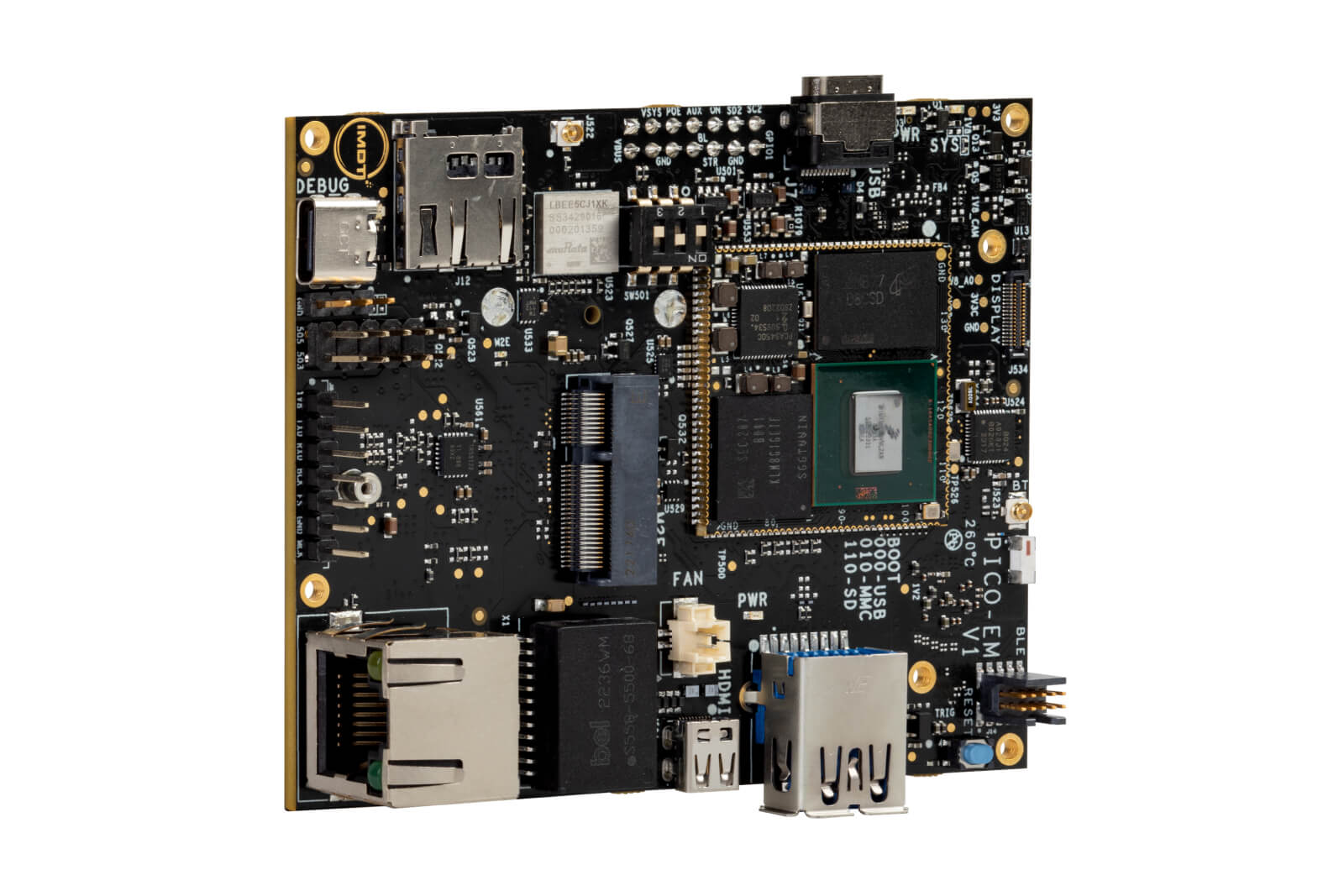

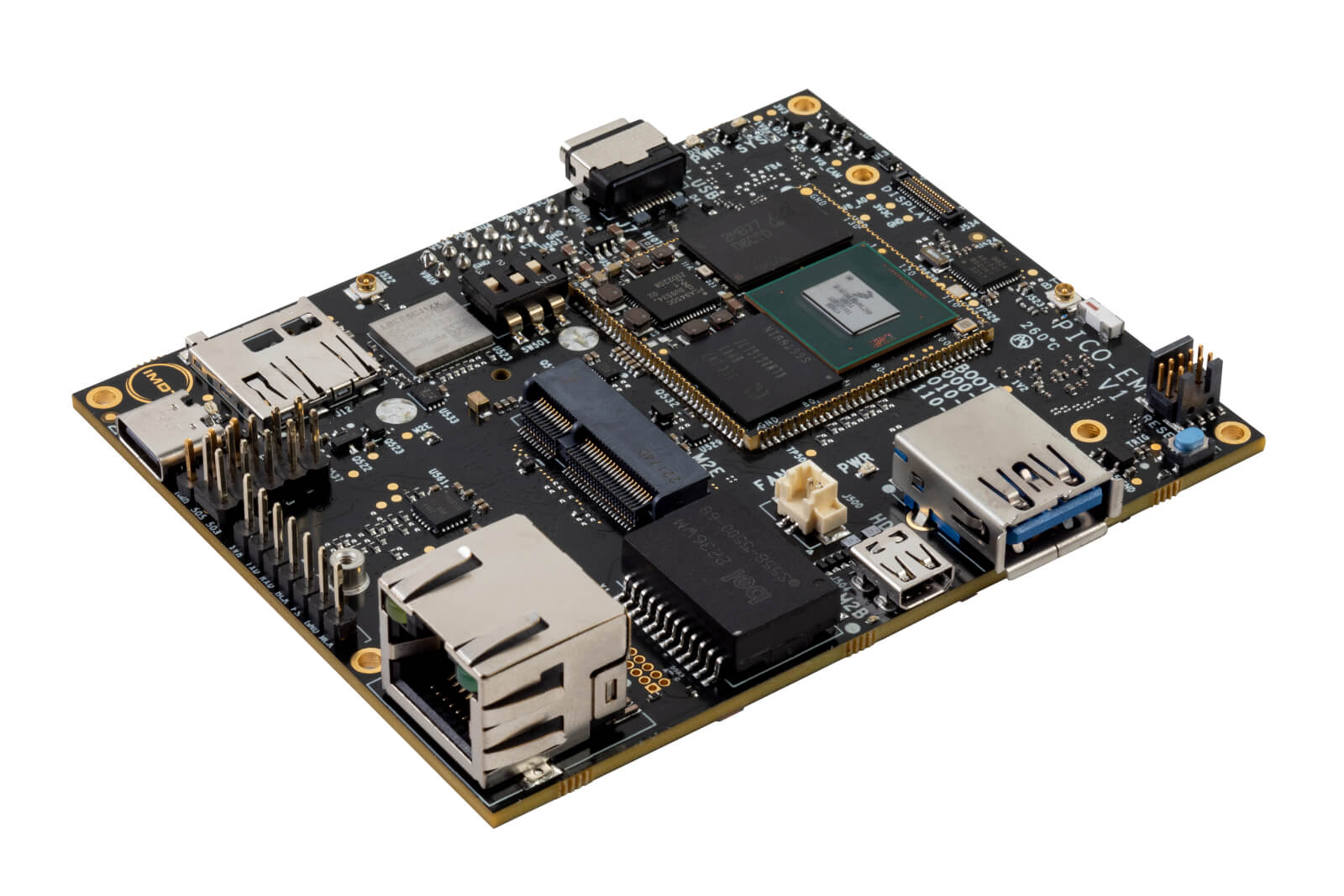

The i.MX 8M Plus-EM SBC is a compact carrier board for the i.MX 8M Plus SOM, designed with a small footprint of only 90x72x19mm. It provides a wide array of connectivity features, including USB 3.0 type-A and type-C ports, multiple M.2 slots, and nano SIM support. With flexible storage options like eMMC and MicroSD, along with onboard CAN-FD transceiver, Gigabit Ethernet, and optional PoE, this SBC is tailored for versatile and space-conscious applications.
- CPU | i.MX8M Plus, Quad A53, NPU, VPU^^
- Memories | LPDDR4, 1GB/2GB/4GB/6GB/8GB^^eMMC 5.1^^Nor Flash 128Mbit for fast boot^^Secure EEPROM^^Micro SD card slot^^
- Connectivity | 2.4/5GHz Wi-Fi 802.11a/b/g/n + Bluetooth 5.2 BR/EDR/LE^^BLE 5.3 with Coded-phy (long range), mesh and direction finding^^CAT-M1 / NB-IoT + GPS cellular module, dual nano SIM^^Gigabit Ethernet, Optional PoE^^1 x USB-3.0 type-C connector^^1 x USB 3.0 type-A connector^^M.2 NGFF Key-E for Wi-Fi module / AI accelerator^^M.2 NGFF Key-B for cellular Module^^RS-232 transceiver onboard^^

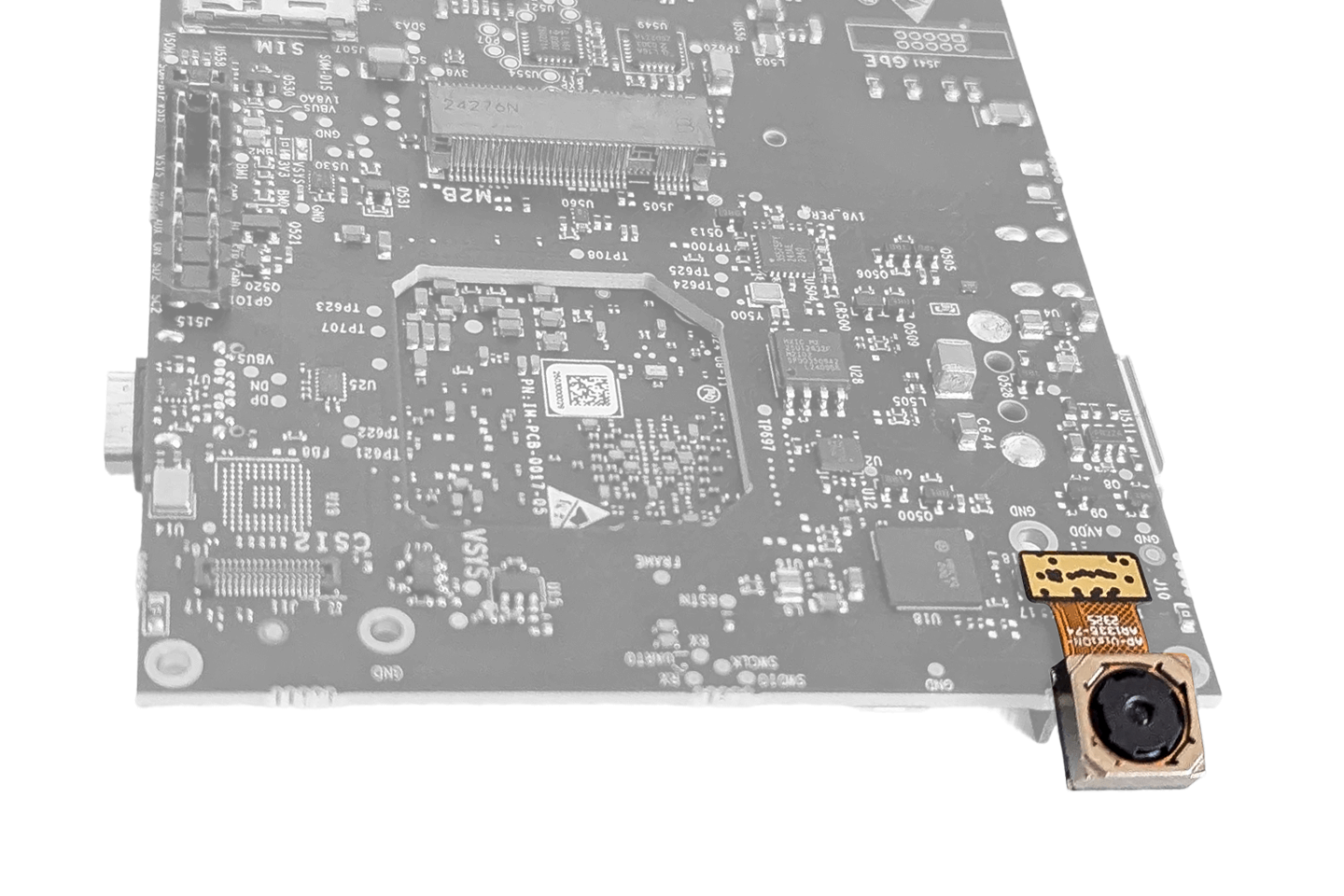

- Camera | 2 x 4-lane MIPI CSI interface for cameras^^ ISP^^
- Display | 4-lane DSI, with touch I/F^^ Micro HDMI connector^^
- Sensors | Temperature & Humidity^^ 6-DOF IMU (Acc+Gyro)^^ 3-Axis magnetometer^^
- Power | USB-C power (5V/3A)^^ Header for external 5V/3A^^
- Misc | RTC^^ Fan control ^^Onboard UART to USB dual bridge with USB-C connector^^ Boot DIP-Switch^^ LEDs^^
- Extensions | I2S, I2C, GPIOs header for external sensors^^
- Dimensions | 90 x 72 x 19mm
i.MX 8M Plus-EMH SBC
The IMDT i.MX 8M Plus-EMH SBC is paired with the Hailo-8 AI processor, boasting up to 26 tera-operations per second (TOPs). This configuration significantly surpasses other edge-AI processors in terms of power efficiency. It enables the simultaneous processing of multi-streams and multi-models, delivering a fully functional system that combines the capabilities of the NXP host processor with the comprehensive connectivity offered by the IMDT SBC. Designed with a compact footprint of just 90x72x19mm, the system provides an extensive range of connectivity options. These include USB 3.0 Type-A and Type-C ports, multiple M.2 slots, and nano SIM support.
- CPU | i.MX8M Plus, Quad A53, NPU, VPU
- Memories | LPDDR4, 1GB/2GB/4GB/6GB/8GB^^ eMMC 5.1^^ Nor Flash 128Mbit for fast boot^^ Secure EEPROM^^ Micro SD card slot
- Connectivity | 2.4/5GHz Wi-Fi 802.11a/b/g/n + Bluetooth 5.2 BR/EDR/LE^^ BLE 5.3 with Coded-phy (long range), mesh and direction finding^^ CAT-M1 / NB-IoT + GPS cellular module, dual nano SIM^^ Gigabit Ethernet, Optional PoE^^ 1 x USB-3.0 type-C connector^^ 1 x USB 3.0 type-A connectors^^ M.2 NGFF Key-E for Wi-Fi module / AI accelerator^^ M.2 NGFF Key-B for cellular Module^^RS-232 transceiver onboard^^
- Camera | 2 x 4-lane MIPI CSI interface for cameras^^ ISP
- Display | 4-lane DSI, with touch I/F^^ Micro HDMI connector
- Sensors | Temperature & Humidity^^ 6-DOF IMU (Acc+Gyro)^^ 3-Axis magnetometer
- Power | USB-C power (5V/3A)^^ Header for external 5V/3A
- Misc | RTC^^ Fan control ^^On board UART to USB dual bridge with USB-C connector^^ Boot DIP-Switch^^ LEDs^^
- Extensions | I2S, I2C, GPIOs header for external sensors^^
- Dimensions | 90 x 72 x 19mm
i.MX 8M Plus-V3 SBC
The i.MX 8M Plus-V3 SBC by IMDT is a high-reliability Single-Board Computer designed for machine learning, computer vision, multimedia, and industrial automation. It supports IoT and edge-AI devices with its connectivity options, low power usage, and high-resolution camera compatibility.
- CPU | i.MX8M Plus, Quad A53, NPU, VPU
- Memories | LPDDR4, 1GB/2GB/4GB/6GB/8GB^^eMMC 5.1^^
- Connectivity | 2.4GHz Wi-Fi 802.11b/g/n + Bluetooth 5.1 BR/EDR/BLE^^1 x USB-3.0 type-C connector^^Optional: CAT-M1 / NB-IoT + GPS cellular module, nano SIM^^
- Camera | 2 x 4-lane MIPI-CSI interface for hi-res cameras with integrated ISP^^1 x SPI low power camera interface^^
- Display | 4-lane DSI
- Audio | Onboard digital microphone
- Sensors | Temperature & Humidity^^6-DOF IMU (Acc+Gyro)^^3-Axis magnetometer^^
- Power | USB-C power (5V/3A)^^Lipo battery charger, 1 cell, 1.5A^^
- Misc | RTC^^ Optional: IR LED
- Extensions | UART^^I2C^^SAI^^USB^^S/PDIF^^CAN^^PWM^^PDM^^GPIOs^^Sleep control^^
- Dimensions | 66 x 40 x 5.6mm
